APU Exhaust Tailpipe for Aerospace & Defense

APU Exhaust Tailpipe Project

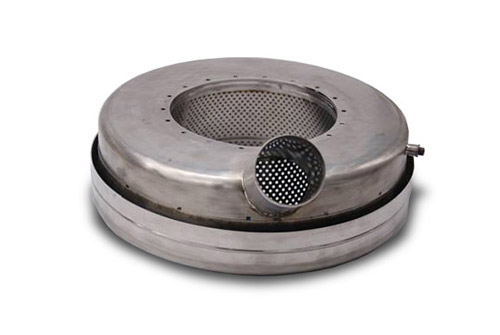

At Precise Metal Products, we have the skills and equipment to efficiently fabricate complex assemblies for the aerospace industry that are typically required in low volumes. We manufactured the exhaust tailpipe shown here for use in an auxiliary power unit. Technically complex, it consisted of 4 sub-assemblies. Constructed from high performance Inconel 625, we used several metalworking processes, including metal spinning, hydroforming, laser cutting/trimming, all of which kept tooling costs low and provided increased structural integrity of the parts.

Our welders joined the components in accordance to established AWS standards for aerospace components. The finished assembly measured approximately 14" in diameter and 5" in height and featured a √125 max surface finish. CMM inspection validated that we met the .001" tolerance requirement, while penetrant testing ensured the welds were defect-free.

Diligent resource planning enabled us to complete this assembly in 30 days, and we currently produce them at the rate of 50 units annually. If you are interested in learning more about this project or the processes we used to produce it, contact us today.
